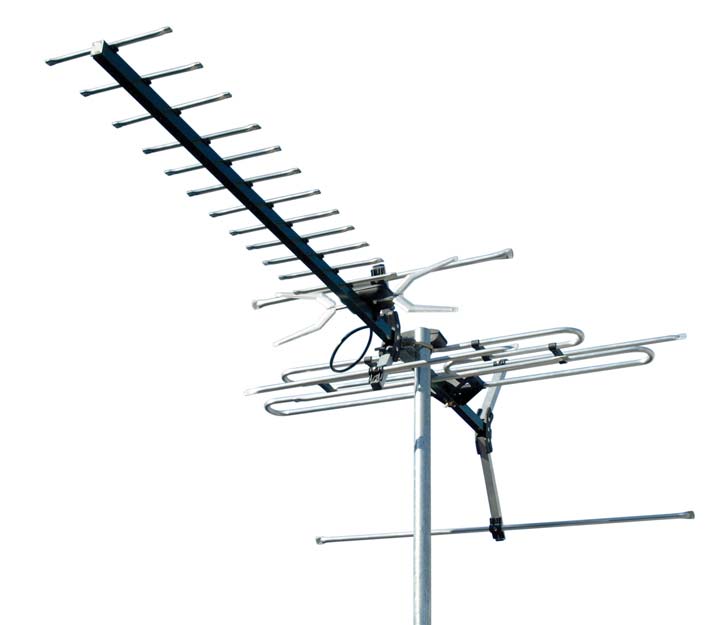

DIGIMATCH DC21A VHF UHF OUTDOOR ANTENNA 21 ELEMENT DIGITAL TV

Item#: 1518

DIGIMATCH DC21A VHF UHF OUTDOOR ANTENNA 21 ELEMENT DIGITAL TV





Application
Metropolitan areas up to 100kms from transmitter. Ideal metro antenna for digital reception and for future UHF restacking.

Features
  • Suitable for metropolitan and some rural areas
  • Heavy Duty Construction
  • Full wave X Type dipole
  • ‘F’ Type diplexing system improves multiplex flatness
  • Quick to assemble with snap lock elements
  • Dual Y Type reflector for multipath rejection
  • G Unit® VHF dipole for extra gain
  • 20dB Isolation between UHF and VHF sections
  • Digital anti-reflection Matching System (DMS) achieved by diplexing the UHF and VHF antennas together, giving 20dB isolation for sharper analogue pictures and better Bit Error Ratio (BER) for digital transmission



Elements 21
Band B3, B4
Channels B3 VHF (6-12)
B4 UHF (28-40)
Max. Gain B3 VHF 8dB
B4 UHF 12dB
AV VSWR <2:1
F/B Ratio B3 VHF 16dB, B4 UHF 21dB
Balun Type 'F' Type Balun VHF
'F' Type Diplexer
Circuit Board
Boom Length 1538mm
Packing Type/Unit Inner: 1
Outer: 5
Inner Carton Size 965 x 260 x 135mm
Weight 3kg





  • Model: dc21a
  • 1000 Units in Stock
Ask a Question

$188.88

Add to Cart:

This product was added to our catalog on Wednesday 14 October, 2009.
